Support the intended base surface
Machine a rigid, flat seat from the exact outline. Locate the sensor without squeezing the case or bypassing the sensing load path.

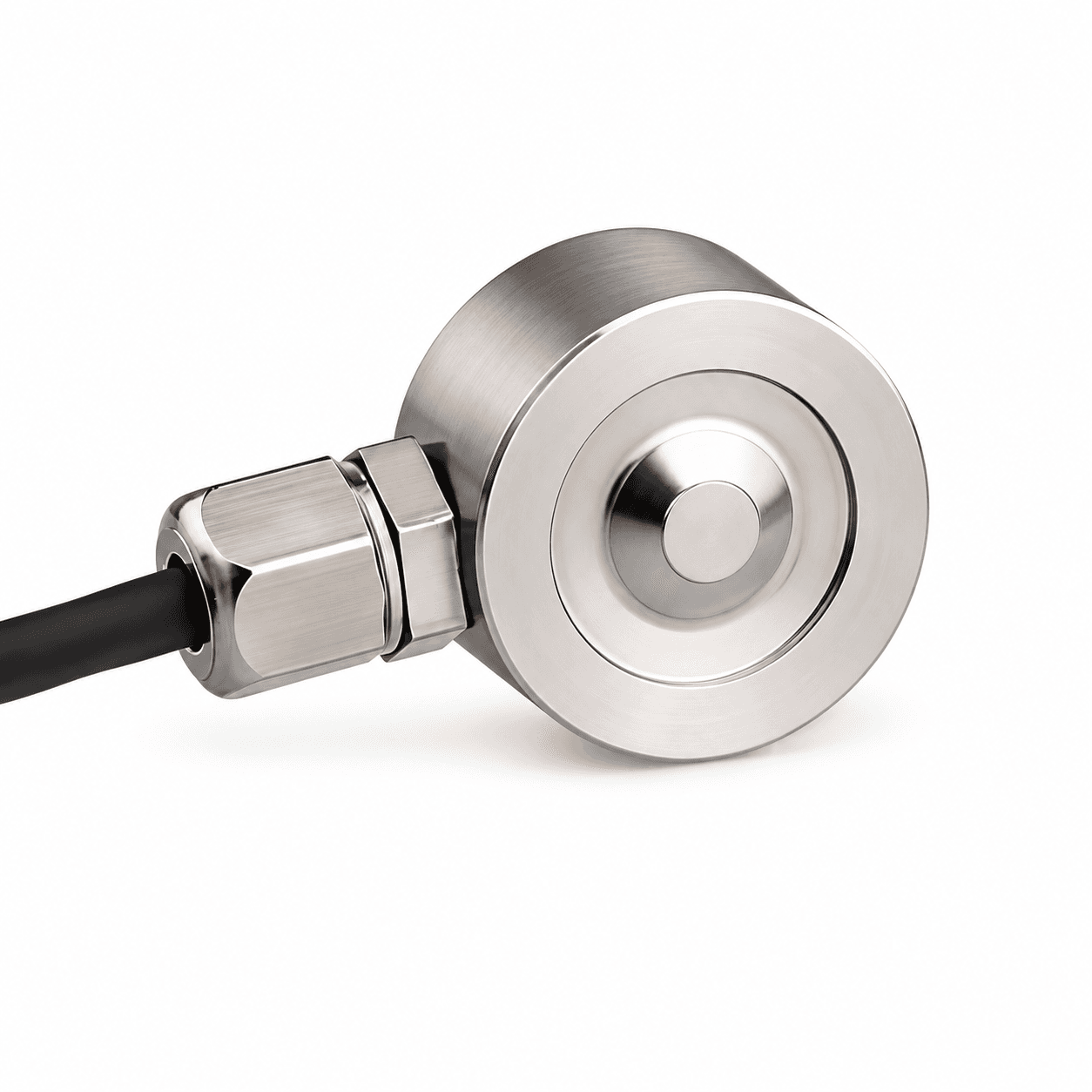

Practical engineering notes for compact compression measurement. Start with the mounting recess, then check force units and the amplifier requirements.
Request a configuration review ↗
A recess should locate the sensor without pinching the body or trapping the cable. Use the exact model drawing to identify its intended base support surface. Do not press on the cover or outer case, and do not copy another model’s recess dimensions.
N, kgf and lbf are force units. Kilograms describe mass; a search for a 1kg, 10kg or 200kg button load cell usually needs its intended force range clarified. The catalog reports N / kgf / lbf together to make that selection explicit.
At 5 V excitation, a nominal 2 mV/V sensor produces about 10 mV at full rated force. Confirm amplifier input range, excitation, shielding, grounding and filtering. Avoid routing the cable alongside motor power wiring.
These sources describe the original manufacturers’ products. They do not certify MT-BLC equivalence.
FUTEK LLB130 — official product and mounting information ↗FUTEK LLB130 — manufacturer outline drawing ↗Interface LBS — manufacturer catalog, load button section ↗A compact sensor only measures correctly when the surrounding fixture supports it correctly.
Machine a rigid, flat seat from the exact outline. Locate the sensor without squeezing the case or bypassing the sensing load path.
Align compression with the sensing axis. Keep the tool clear of the cover and outer case; a spherical top helps accommodate small alignment differences.
Provide a dedicated exit channel and jacket retention. Specify flexing, bend space and a strain-relief spring or sleeve with the configuration.
Need an application-specific answer?
Talk through your force path ↗
Include preload, normal compression peaks and credible overloads. Select a range that resolves the minimum force of interest while leaving mechanical margin, and add a fixture overload stop.
Kilograms describe mass. Use kgf when expressing force: 1 kgf = 9.80665 N. The tables show N, kgf and lbf together; dimensions and ratings remain model-specific.
Send the complete original model, drawing revision, capacity and electronics details. We review mechanical and electrical interfaces and agree a sample correlation test before compatibility is confirmed.
No. Cable, sensor body and amplifier ratings are separate. Request a +150°C or +200°C sensing configuration with the actual thermal conditions and agreed zero/span limits.
A bare mV/V bridge normally needs a compatible conditioner. Specify an MT-AMP-KIT with 0–10V, 4–20mA or an agreed RS485 interface, plus system calibration and force mapping.
Send OD × height, peak force and output. We’ll start with the fit.
