MT-BLC-SUB01
Subminiature load buttons
Robotics fingertips & miniature instruments
- Diameter
- Ø6 / Ø8 / Ø9.5 mm
- Capacity
- 1–250 N
MT-BLC / MT-AMP-KITFind your button
Find your button
load cell.
Compare miniature compression load buttons by mounting envelope, force range and output. Each series opens a drawing-focused engineering RFQ.
Engineering selection assistantDefine the space.
Compare all series ↓Define the space.
Account for the preload.
Screen family request bounds, convert force units and build a brief for drawing review. Exact dimensions, force range and thermal performance require a confirmed configuration.
Illustrative inputs:
Enter a measured or planned force, not mass in kg. Peak means additional compression above preload. A zeroed display does not remove physical preload. No automatic safety factor is applied.
Enter OD, height and peak incremental force, or load an illustrative example.
Conversion basis: NIST SP 811, Appendix B, footnote 23. Family data: our published request envelopes and controlled-document process. Results are a requirements screen, not a released product specification.
Compare the five parent series.
| Outer diameter (OD) | Height (H) | Series / fit | Button radius | Capacity (N / kgf / lbf) |
|---|---|---|---|---|

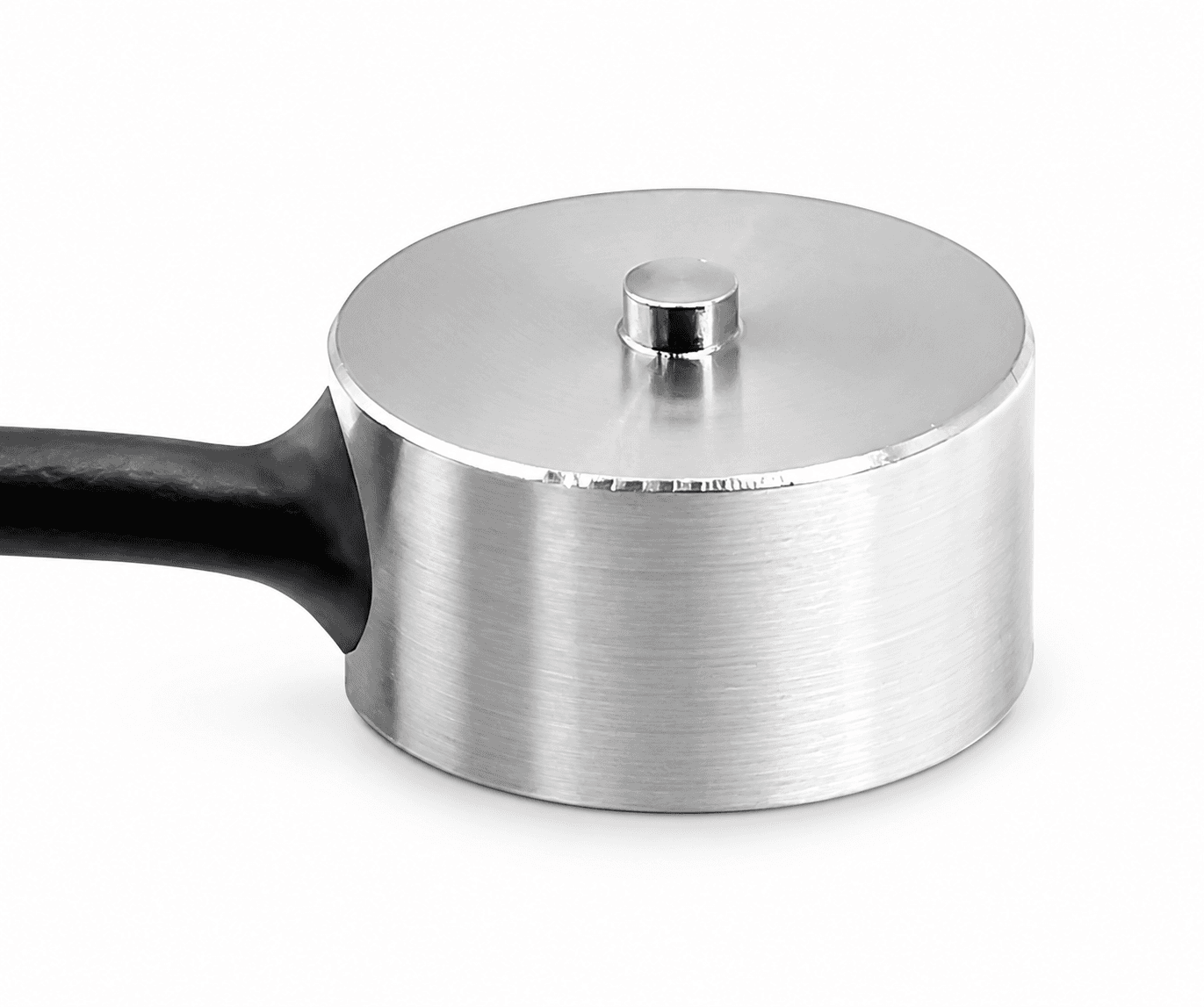

| Ø6 / Ø8 / Ø9.5 mm | 2.8–4 mm | MT-BLC-SUB ↗Robotics fingertips & miniature instruments | Spherical; drawing-specific | 1 N / 0.102 kgf / 0.225 lbfto 250 N / 25.493 kgf / 56.202 lbf |

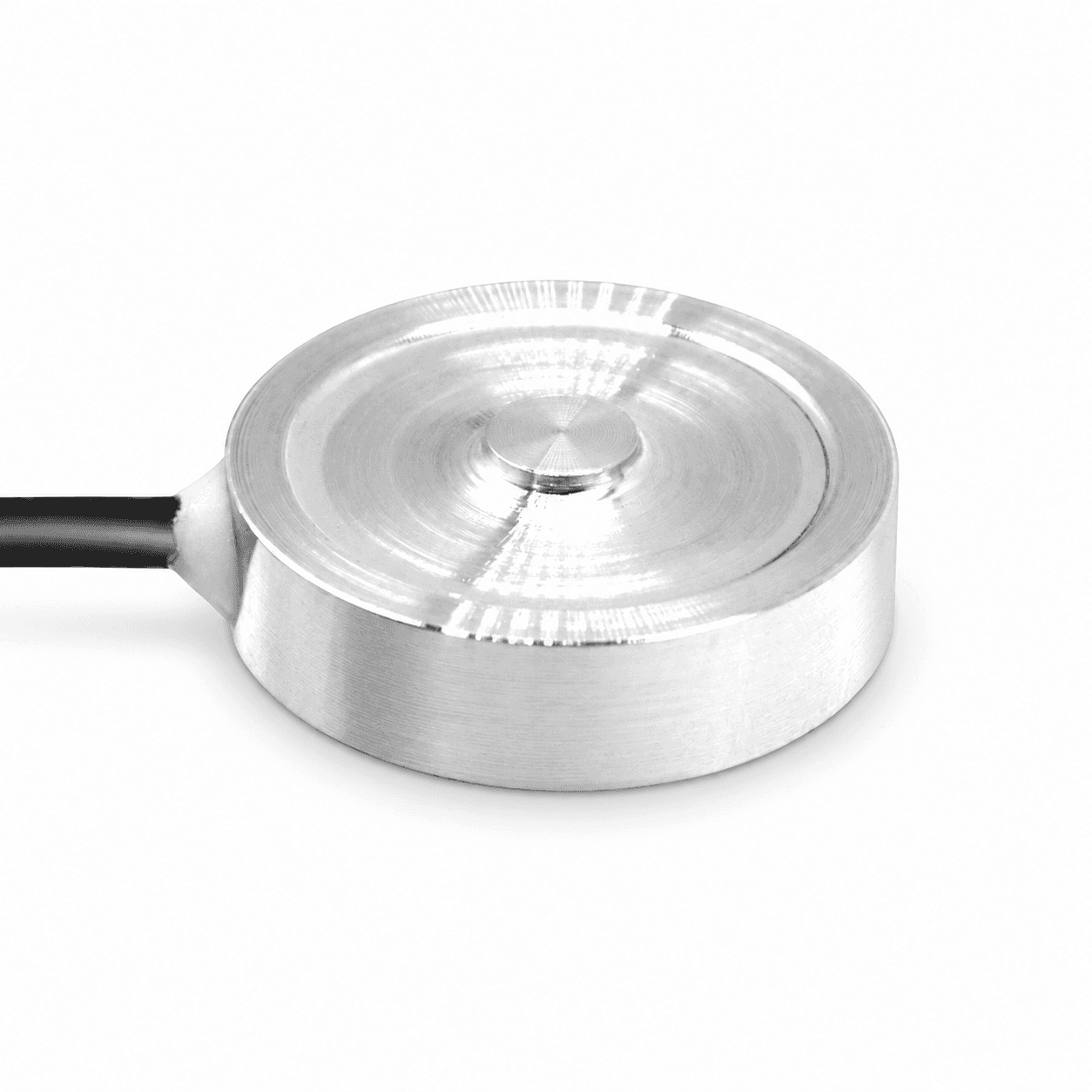

| Ø12.7 / Ø19 / Ø25.4 mm | Drawing-specific; 6.4 / 9.5 mm options | MT-BLC-LBM ↗Press-fit tooling & industrial fixtures | Spherical; drawing-specific | 50 N / 5.099 kgf / 11.24 lbfto 10,000 N / 1,019.716 kgf / 2,248.089 lbf |
| Drawing-specific | Drawing-specific | MT-BLC-THD ↗Switch, stop & ejector-pin testing | Spherical; drawing-specific | 10 N / 1.02 kgf / 2.248 lbfto 5,000 N / 509.858 kgf / 1,124.045 lbf |
| OEM envelope review | OEM envelope review | MT-BLC-MED ↗Infusion pumps & medical device development | Spherical; drawing-specific | 5 N / 0.51 kgf / 1.124 lbfto 100 N / 10.197 kgf / 22.481 lbf |
| Sensor selected separately | Module-specific | MT-AMP-KIT ↗Laboratory acquisition & PLC integration | Sensor-specific | Matched to selected sensor |
MT-BLC-LBM02
Miniature button load cells
Press-fit tooling & industrial fixtures
- Diameter
- Ø12.7 / Ø19 / Ø25.4 mm
- Capacity
- 50–10,000 N
MT-BLC-THD03
Threaded button load cells
Switch, stop & ejector-pin testing
- Diameter
- Drawing-specific
- Capacity
- 10–5,000 N
MT-BLC-MED04
Medical OEM force sensors
Infusion pumps & medical device development
- Diameter
- OEM envelope review
- Capacity
- 5–100 N
MT-AMP-KIT05
Readouts & USB kits
Laboratory acquisition & PLC integration
- Diameter
- Sensor selected separately
- Capacity
- Paired to sensor
Design around the actual measurement.
From envelope to measurementA few millimetres.
Request a quote / sample A few millimetres.
A better force measurement.
Send OD × height, peak force and output. We’ll start with the fit.
